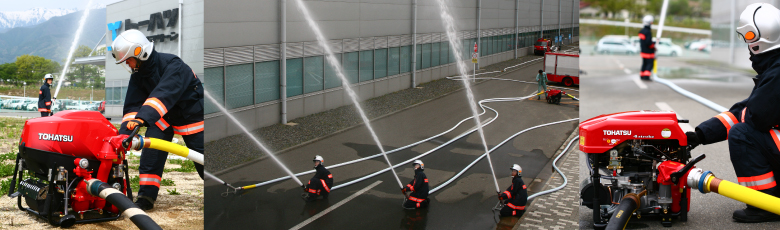

TOHATSU-V52AS Bơm chữa cháy Diesel

Công Ty TNHH đầu tư và thương mại tổng hợp Quốc Thái

MODEL:V52AS



 Model:

 V52AS

 Engine:

Type:

 Tohatsu 2-stroke, 2-cylinder, water cooled gasoline engine

Bore & Stroke:

 76mm x 68mm

Piston displacement:

 617cc

Authorized output:

 40.8PS/ 30 kW

Fuel tank:

 18 liters

Fuel consumption:

 9 liters/h

Ignition:

 Flywheel magneto (C.D.Ignition)

Starting system:

 Starter motor and automatic recoil system

Lubrication:

 Auto mixing (Separate oil tank)

Choke system:

 Auto choke

Spark plug:

 NGK BP7HS-10

Light bulb:

 12V-35W

Battery:

 12V-16Ah/5h

 Pump:

Type:

 Single suction, single stage, high pressure turbine pump

Delivery outlet:

 JIS fire thread (B-9912), 2-1/2" (65mm) male

 BSP 65mm (G 2-1/2") male

Suction inlet:

 JIS fire thread (B-9912), 3" (75mm) male

 BSP 100mm (G 4") male

Priming:

 Rotary-vane vacuum pump (Oilless type)

 Pump performance:
 (Suction height: 3m)

 1,450 liter/min. at 0.4 MPa

 1,250 liter/min. at 0.6 MPa

 1,000 liter/min. at 0.8 MPa

 600 liter/min. at 1.0 MPa

 Overall dimensions:

 Length: 700mm x Width: 620mm x Height: 730mm

 Mass (dry):

 85kg

 Max. suction height:

 Approx. 9m (29.5 feet)
